Traverse Systems

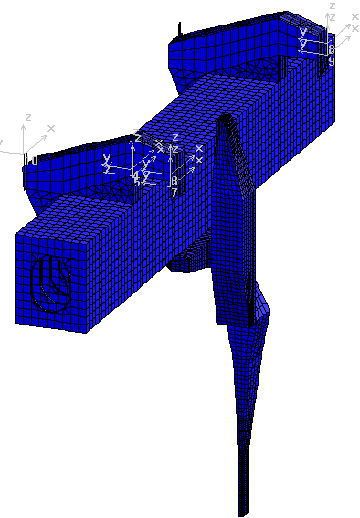

Finite Element Model

The backbone in the design of the traverse system, is the computer calculations of Finite Element Models. All loads, stiffness and support of elements, are carefully calculated and inserted in the model. Also "dummy" loads as motors, cables and other parts not belonging to the bearing structure, are regarded. The model is then passed through a global optimization.

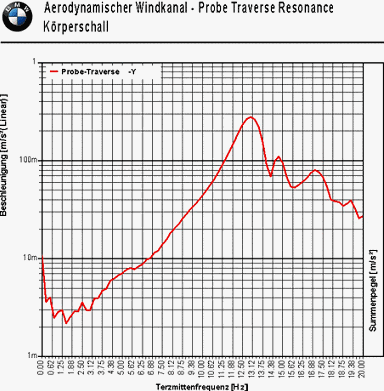

A measurement, performed by BMW, of the natural frequency on the final system.
