Traverse Systems

Model Wind Tunnel

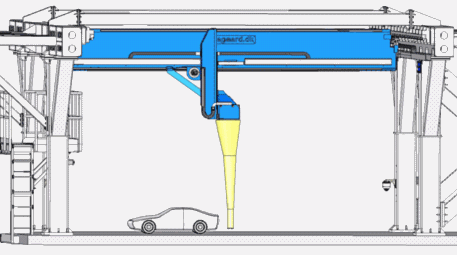

The traverse is a three axis traverse for a model wind tunnel, installed for Honda R&D Americas in USA, 2010.

Type of traverse: 2YXZ

The traverse is mounted on a lattice construction instead of the building.
The construction of the lattice construction has been modeled and optimized together with the traverse

Finite Element Model of the lattice construction and traverse
