Traverse Systems

Traverse for Light Sheet

The traverse is designed to be mounted directly on the outside of a wind tunnel structure. The system is a 2D traverse with one axis for moving in horizontal direction  and one Gantry axis for moving in vertical direction.

It is designed to achieve a high straightness on the X-rail, which is crucial to keep the light sheet in a well defined position.

The system is delivered with a cabinet for the control electronics and a software package for controlling and monitoring the system.

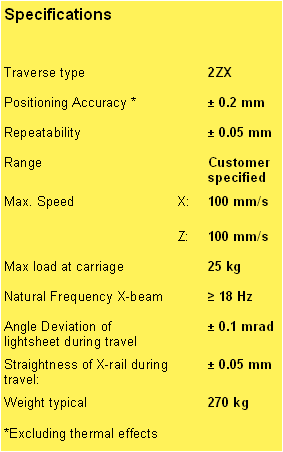

Specifications. Carriage loaded with 25 kg
