Traverse Systems

Accuracy

Precision guides are used for movement along the main axis. They consist of polished rails and pre-stressed roller bearings, ensuring high accuracy and stiffness.

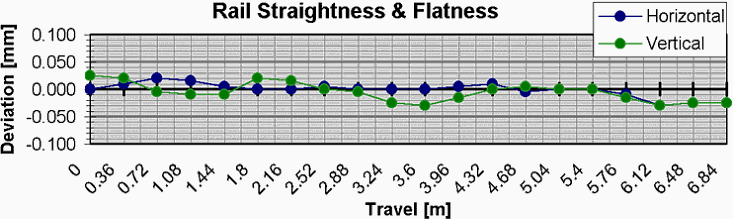

The multi-adjustable rail supports are important elements in the advanced design. Their three degrees of freedom ensure that the rails can be installed with great precision. The curve below is an example of the achievable accuracy.

To optimize the position precision even further, a software compensation in the control system can be added.

Straightness and Flatness of a linear axis. Also Super elevation is given to the rails to compensate for downward flexing under travelling load.
